The Blastcool XP1 Refrigerator is independently certified and safety approved for outdoor use by leading test house SGS. Marine grade stainless protects the outside whilst powerful refrigeration ensures fast cooling of freshly loaded beverages inside, and it achieves all this in baking summer heat of up to 43°C.
Food can be stored within food safe limits in the solid door versions and the AISI 304 grade stainless interior ensures that good hygiene can be maintained. The interior lamp colour (Blue light or white light) can be user-selected via the switch on the appliance’s control panel whilst the latest energy efficient technologies are incorporated to minimise the Carbon Footprint.
Choose a solid door XP1 for outdoor kitchens where direct sunlight might be a problem or if you prefer to conceal the contents, such as food or fruit for cocktails.
Left hinged door
Right hinged door

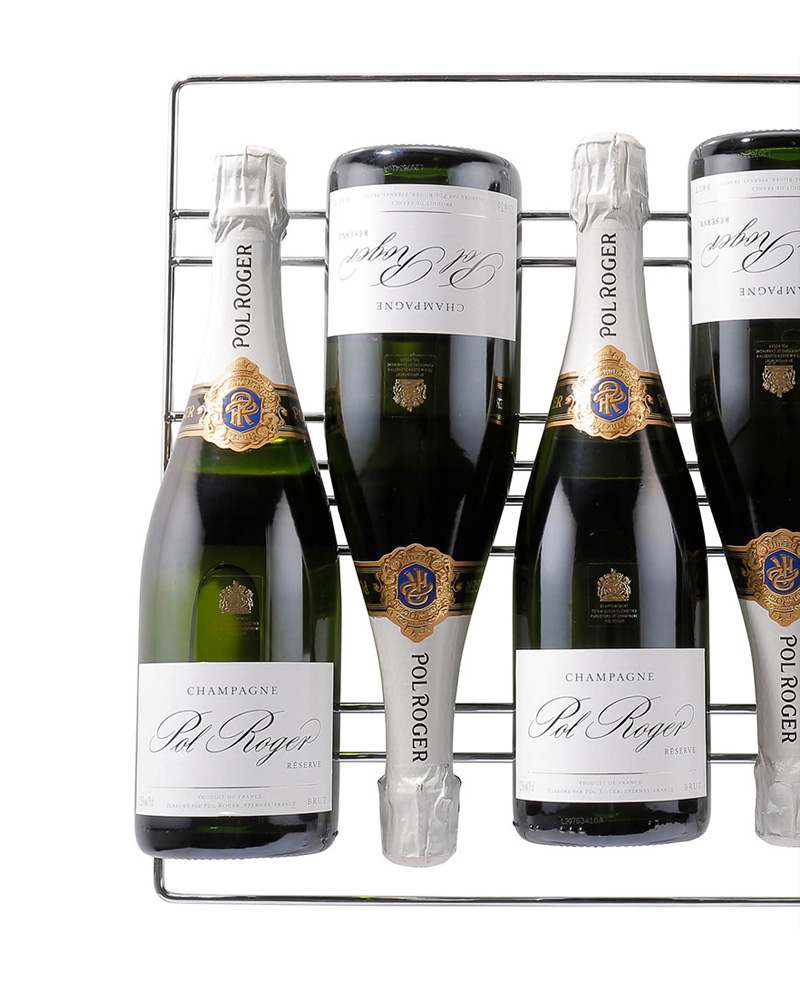

Blastcool has developed a unique system for the storage of wine that makes use of adjustable rubber saddles that slide across the shelf. In this way, the same shelf can be used for champagne or wine bottles. Capacity is utilised efficiently by means of being able to top and tail the bottles.
| Height of standard model (mm) | 870 |
| Height of special order model (mm) | 840 |
| Width (mm) | 600 |
| Depth (mm) | 575 |
| Depth including handle (mm) | 615 |
| Top (mm) | 10 |
| Each side (mm) | 10 |
| Rear (mm) | 30-50 |
| Rated Voltage (Volts) | 220-240 |
| Frequency (Hertz) | 50 / 60 |
| Glass Door Rated Input Power (Watts) | 173 |
| Glass Door Rated Current (Amps) | 1.45 |
| Solid door Rated Input Power (Watts) | 128 |
| Solid Door Rated Current (Amps) | 1.25 |
| Power cable length (metres) | 1.8 |
| Net Weight (kgs) | 64 |
| Bottle capacity (330ml beer bottles) | 100 |
| Gross Capacity (Litres) | 148 |
| Refrigerant Gas | R600a |
| Outdoor Setting (Db) | 49 |
| Indoor (Air Conditioned) Setting (Db) | 42 |
| Minimum Rated Ambient Conditions* (C) | -25 |
| Maximum Rated Ambient Conditions (C) | +43 |
| Ingress Protection Rating (IP) | 24 |
*Cooler must be empty so as not to freeze contents.
Left hand hinge option available on on XP1 (Must be ordered. Not user adjustable).
Guarantee: Two years parts and labour guarantee within mainland EU.
The fridge is delivered in strong packaging with clear markings. A pallet is provided for ease of movement.
A robust ventilation grille allows for inlet and exhaust air to be directed from the front of the cabinet which is a must for built-in placement within an outdoor kitchen. The lock and control panel are also easily accessible.
The rear of the cooler is sealed against the weather. An air inlet is provided for situations where some additional cooling air is available. If none is available, then the cooler will draw all of its air requirement from the front grille.
Blastcool Extremis Instruction Book (PDF 4mb)
840mm High Cabinets
| Product | Code | DWG | DXF | SKP | |
| Left hinged, glass door | XP1-840-L | Download | Download | Download | Download |
| Right hinged, glass door | XP1-840-R | Download | Download | Download | Download |
| Left hinged, solid door | XP1-840-L-SD | Download | Download | Download | Download |
| Right, hinged solid door | XP1-840-R-SD | Download | Download | Download | Download |
870mm High Cabinets
| Product | Code | DWG | DXF | SKP | |
| Left hinged, glass door | XP1-870-L | Download | Download | Download | Download |
| Right hinged, glass door | XP1-870-R | Download | Download | Download | Download |
| Left hinged, solid door | XP1-870-L-SD | Download | Download | Download | Download |
| Right, hinged solid door | XP1-870-R-SD | Download | Download | Download | Download |

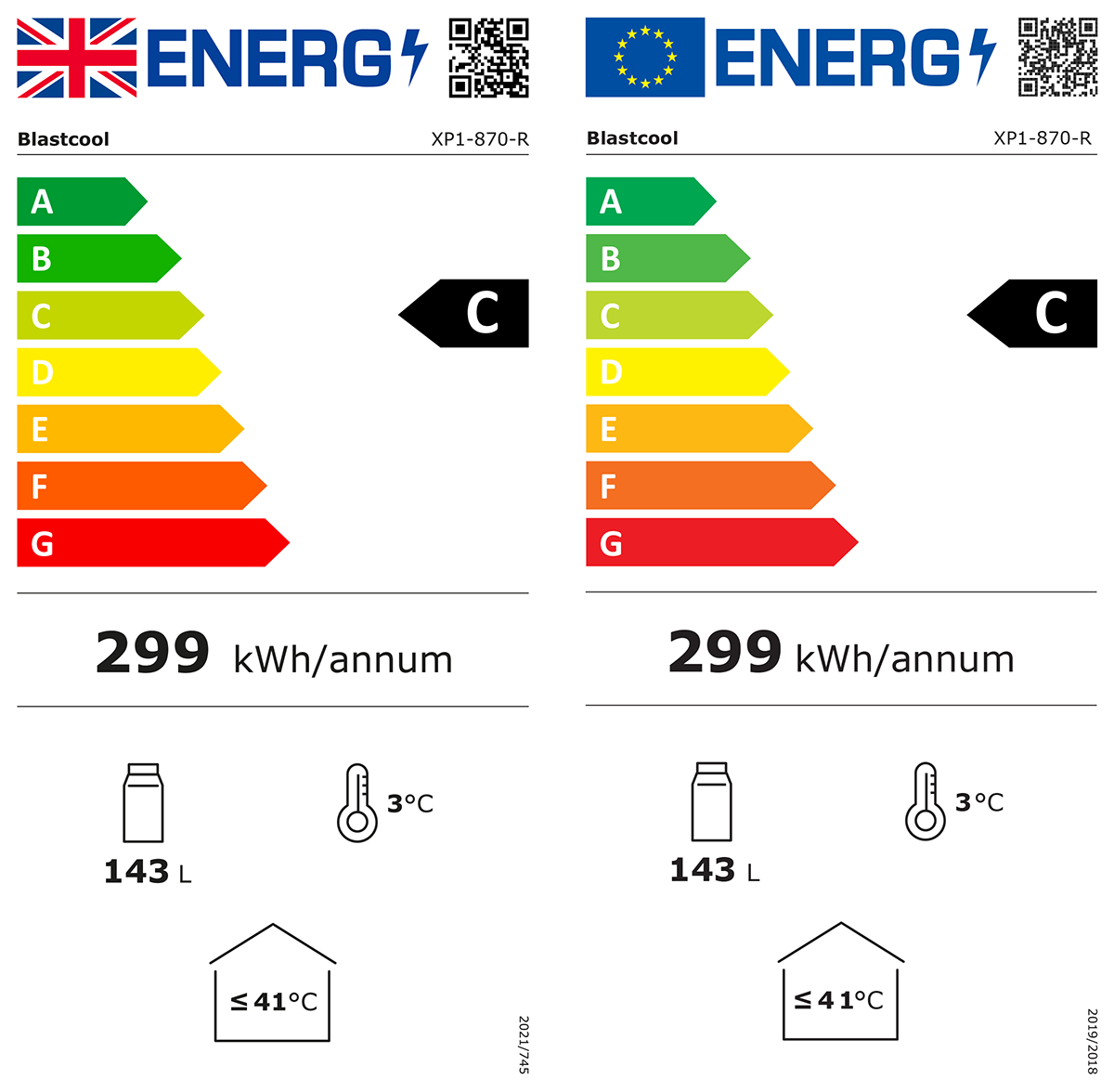

| Product | Code | Height | Door | Product Information Sheet | UK Energy Label | EU Energy Label | Arrow |
| Glass door | XP1-840-R | 840mm | Right | Download | Download | Download | Download |
| Solid door | XP1-840-R-SD | 840mm | Right | Download | Download | Download | Download |
| Glass door | XP1-870-R | 870mm | Right | Download | Download | Download | Download |
| Solid door | XP1-870-R-SD | 870mm | Right | Download | Download | Download | Download |
| Glass door | XP1-840-L | 840mm | Left | Download | Download | Download | Download |
| Solid door | XP1-840-L-SD | 840mm | Left | Download | Download | Download | Download |
| Glass door | XP1-870-L | 870mm | Left | Download | Download | Download | Download |
| Solid door | XP1-870-L-SD | 870mm | Left | Download | Download | Download | Download |
Thank you for your interest in Blastcool outdoor fridges. Whether it is to enquire about a new order or to request a service visit, please can you call or email and we will be delighted to help.
